INTRODUCING

Sheeran Looper X

LEVEL UP YOUR LOOPS

INTRODUCING

THE LOOPER X

Representing over a decade of research and development, the Sheeran Looper X has been designed to perform flawlessly night after night, tour after tour, offering musicians from singers, guitarists and keyboard players to violinists, drummers, and beatboxers the tools to infinite creative possibilities.

Take your performances to the next level with the stadium-grade multi-track looper workstation designed by Ed Sheeran and his production team.

Looper X features a 7” high-resolution multi-touch display, premium die-cast aluminum pedals, multi-track looper modes and remix functions, comprehensive audio connectivity, over 7 hours of internal loop storage with virtually unlimited expansion via USB/SD, a full onboard multi-FX engine powered by HeadRush® and more!

LOOPER X

OVERVIEW

DESIGNED
WITH ED

Inspired by over a decade of looping experience with Ed, we created the ideal combination of ergonomically designed hardware and instinctive software to make looping more accessible than ever before.

STAND OUT WITH THE CROWD

Designed by Ed and his production team, Looper X expands on the pioneering features of Ed’s custom-made, stadium stage looper.

THE MOST ADVANCED STANDALONE LOOPER

Leading-edge hardware design featuring Ed’s signature precision-engineered die-cast aluminium pedals and a super-responsive 7” multi-touch display.

CARVE
YOUR PATH

Explore a new world of possibilities with powerful looper modes, loop creation and remix functions plus a premium onboard multi-FX engine powered by HeadRush®

GET
YOURSELF CONNECTED

Looper X is packed with best-in-class i/o and a built-in USB Audio interface giving you unprecedented audio connectivity.

PERFORMANCE

SHAPE OF YOU

SHEERAN LOOPER WORKFLOW

Intuitive Track and Waveform performance views combined with heads-up LED feedback put Ed’s stadium looper technology right at your feet. Looper X goes a step further offering personal customizations to looper modes and pedal assignments to make Looper X your own.

ERGONOMIC PEDAL
SURFACE

Inspired by Ed’s fast-paced and energetic performances, Looper X’s ergonomically designed pedal surface is built to be played like an instrument as part of your performance.

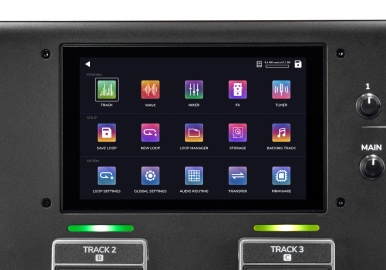

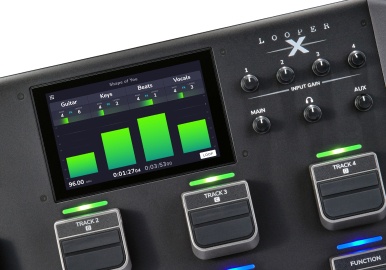

TOUCH SCREEN
NAVIGATION

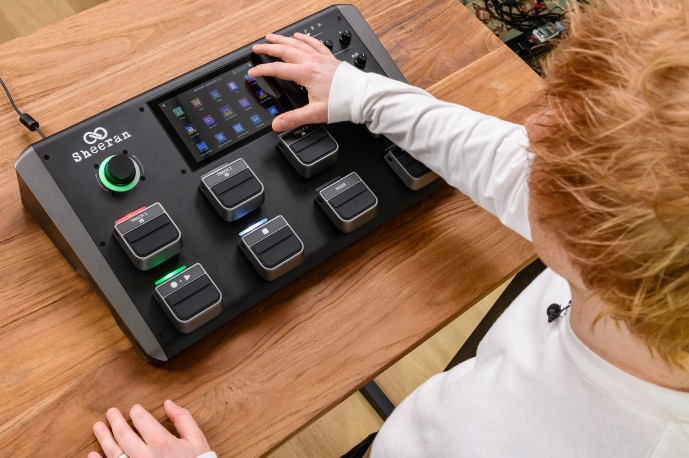

Looper X’s intuitive and responsive 7” touch display is your mission control - making it quick and easy to navigate its extensive feature set. The large navigation wheel with center push function makes it simple to dial in parameters, while tactile input gain and output volume controls offer fast and easy setup for any musical situation.

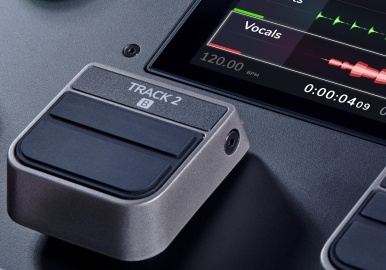

STADIUM GRADE
HARDWARE

Looper X features Ed’s stadium stage signature foot pedals with titanium grey satin finish. These precision-engineered pedals are cast from automotive-grade aluminum and mounted to a rugged matte black powder coated steel chassis for ultimate durability. Looper X’s pedals and side panels feature a beautifully contoured design inspired by Ed’s very own Sheeran by Lowden™ guitar range.

EVERYTHING UNDER CONTROL

For Looper X we wanted to build the most intuitive user interface we possibly could.

The optimally pitched 15° pedal surface provides instant access to your transport and track controls. Pressing and/or holding the Mode and Function pedals enable you to quickly access track, waveform and mixer views, switch looper modes, mute and solo tracks, fade loops in and out, as well as instantly manipulate the playback direction, loop length, speed, and pitch in real time. Just like a DAW, you can also quickly bounce individual or multiple tracks on-the-fly.

LOOPING WITHOUT LIMITS

Looper X can record up to four stereo looper tracks in a single session with no maximum loop lengths. You can save over seven hours of audio to internal storage or expand to a virtually unlimited amount of storage by connecting external USB or SD drives.

Looper X offers powerful algorithmic features such as tap tempo with intelligent time-stretch, automatic tempo detection of your naturally played loops, plus the ability to quantize a loop’s end points to help keep everything in sync. You can also import loops (.wav or .mp3) to a track and automatically match the current loop tempo.

Looper X also features control via external MIDI devices, as well as a customizable pedal menu to allow you to completely personalize and adapt Looper X to your perfect workflow.

CREATIVE LOOPER MODES

Looper X offers a range of looper modes to complement your looping style for just about any musical situation. From Ed’s powerful Multi-Track mode to the endless possibilities of multiplying and dividing loops on demand. You can create advanced song arrangements and even turn Looper X into 4 separate loop pedals all using the instinctive pedal interface.

POWERED BY

PROFESSIONAL
MULTI-FX
ENGINE

The Sheeran Looper X’s powerful on-board FX engine from HeadRush® enables you to enhance and reimagine your loops like no other loop pedal. Sheeran Looper X features a full array of individual and multi-FX processor chains to enhance your sound and level-up your loops!

Multi-FX racks

Choose from one of the 9 different multi-FX racks featuring over 150 unique presets custom-designed for vocals, guitars, keys, percussion and more.

Effect options

Customize your own single effects by choosing between 26 different stomp-box effect options

Compression/EQ

Warm things up with classic guitar overdrive, chorus and amp presets or tighten up drums and keyboards with compression and EQ.

Vocal shimmer

Make your vocals shimmer with reverb and delay, add modern auto-tune and auto-harmony to your vocals or take your loops to a new dimension with lo-fi and rhythmic effects like the slicer and pumper.

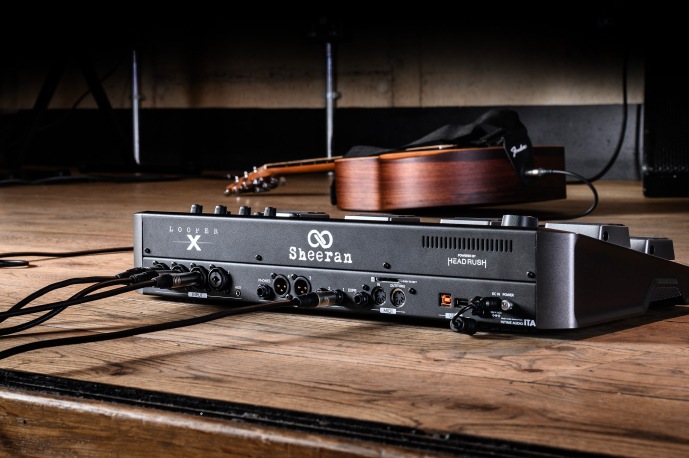

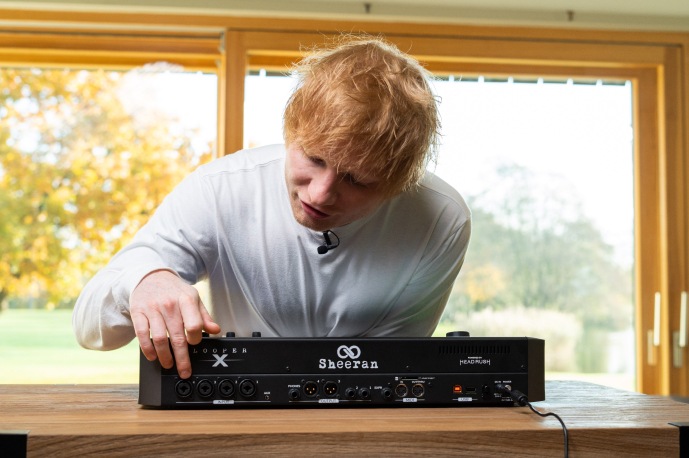

STAY
CONNECTED

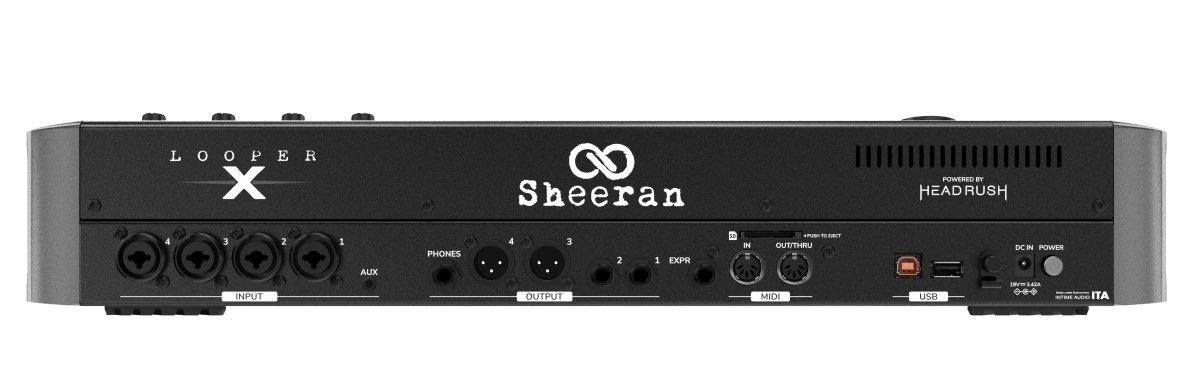

The Sheeran Looper X’s rear I/O combines best-in-class audio quality with unprecedented flexibility to easily adapt to your performance setup, live or in the studio. Featuring 4 combo XLR+1/4” inputs with switchable phantom power for microphones and instruments, 2 XLR and 2 1/4” main outputs with configurable audio routing, 1/4” headphones output, 1/8” aux input, 5-pin MIDI input and output, USB and SD storage inputs, plus an onboard 2-in/2-out USB-audio interface, Looper X provides all the connections you need.

1
2
3
4
5
6
7
8
1
Instrument Inputs & Microphone Inputs: (4) Combo XLR+1/4” Inputs (Balanced, Mono)
2
Aux Input 1/8" Input (Stereo)
3
Main Outputs & Headphones Optputs: (2) Outputs, (2) 1/4" Outputs, 1/4" Headphones Output
4
SD Card Slot
5
MIDI I/O & Expression Input: 5-Pin MIDI Input & MIDI Out/Thru, 1/4" TRS Expression Input
6
USB Connections: (1) USB-B Connection, (1) USB-A Connection
7
Power Input & Switch: 19V DC PSU 2.5mm Barrell (included)
8
Power Cable Restraint

TECHNICAL
SPECIFICATIONS

Top Panel
Display:
7" full color multi-touch display
Housing:
Matte black powder coated steel chassis
Pedals:
(8) die-cast aluminum pedals with titanium grey satin finish and RGB LED status indicators
Control Knobs:
360° navigation wheel with push-to-enter function and RGB LED ring indicator
(4) Input gain control knobs
Main outputs volume control knob
Auxiliary input volume control knob
Headphones output volume control knob
Rear Panel
I/O:
(4) combo XLR+1/4” (6.35 mm) balanced inputs (mono)
1/8” (3.5 mm) stereo input (auxiliary device)
1/4” (6.35 mm) expression pedal input (TRS)
(2) XLR balanced outputs (with ground lift)
(2) 1/4” (6.35 mm) balanced outputs (switchable between line/amp level)
1/4” (6.35 mm) stereo output (headphones)
5-pin MIDI input
5-pin MIDI output
USB Type-A port
USB Type-B port
SD card slot
Power adapter input with power switch and cable restraint
Power Specifications
Power Input:
19V DC, 3.42A, Center-Positive (adapter included)
Battery Power Type:
N/A
Est. Battery Life:
N/A
Looping Specifications
Looping Modes
5 (Multi, Song, Sync, Band, Free)
Looping Functions
Record, Overdub, Play, Stop, Undo, Clear Track, Clear All, Reverse, Fade In/Out, Mute, Solo, Peel, Bounce, Multiply/Divide Length, Multiply/Divide Speed, Transpose
Max # of Looper Tracks
4
Max Loop Length
4
Max # of Looper Tracks
Unlimited Time
Max Overdub Layers Per Loop
99 Peelable Layers / Unlimited Bouncing
Max Overdub Time Per Loop
Unlimited Time
Loop File Storage Format
.WAV (16-Bit PCM, 48.0 kHz)
Max # of Stored Loops
Unlimited
Onboard Storage Time
Over 7 Hours
Onboard Storage Space
~5.1 GB
Max External Storage Time
Unlimited (depending on connected drive's free storage)
Other Features and Functionality
Built-In FX
9 different multi-FX types featuring 159 custom-designed presets and 26 customizable single effects
Built-In Drum and Percussion Loops
302
Metronome/Click
Yes
One-Shot
Yes
Decay (Feedback)
Yes
Auto Loop BPM Detection
Yes
Internal Pedal Assignment Customization
Yes
Ext. Expression Pedal Customization
Yes
Intelligent Time Stretch
Yes
Preset Track Lengths
Yes
Onboard Chromatic Tuner
Yes
Onboard Backing Track Player
Yes
Multi-Touch Track Mixer
Yes
USB Transfer Mode
Yes
USB Audio Interface Mode
Yes
Control from Externeral MIDI Devices
Yes
MIDI Clock Sync
Yes, Send and Receive
Audio Routing Customisation
Yes, fully customizable
Audio Processing Specifications
Processor Type
Custom quad-core HeadRush(R) DSP
System Audio Bit Rate
32-Bit Float
System Audio Sample Depth
48.0 kHz
A/D D/A Conversion
24-Bit
USB Recording Specifications
Bit Rate
24-Bit
Available Sample Depths
44.1 kHz, 48 kHz, 96 kHz
Input Channels
2
Output Channels
2
USB Loop Import Specifications
Supported File Types
.WAV, .MP3
Supported Bit Rates:
16-bit PCM, 24-bit PCM, 32-bit PCM, or 32-Bit Float
Supported Sample Rates:
44.1, 48.0, 88.2, or 96.0 kHz
Supported External Drive Types
USB, SD
Supported External Drive File Systems
FAT16, FAT32, exFAT
Dimensions and Weight
Pedal Dimensions (WXDXH):
21.72” x 12.6” x 3.96” (55.17 x 32 x 10.06 cm)
Pedal Weight:
16.09 lbs. (7.3 kg)
Box Dimensions (WXDXH):
28.44” x 15.48 x 6.84” (72.24 x 39.32 x 17.37cm)
Box Weight:
20.28 lbs. (9.2 kg)
